Coolsure ECS (2800)

When deploying free cooling solutions in tropical climates, care needs to be taken not to introduce damaging hot/humid air into the shelter. Coolsure ECS free cooling system incorporates accurate psychrometric sensors which continuously monitor the temperature and humidity of the outside air and prevent damaging hot/humid air from being introduced into the shelter.

Key Features

• Incorporates enthalpy (humidity) control to prevent excessive damaging humidity from being introduced into BTS shelter
• Optional long-life washable waterproof membrane filter for best protection against contaminants such as salt spray, acid mist, etc, in problem areas
• Speed controlled DC fan reduces power consumption
• Can directly connect to Coolsure air conditioners via built in CoolBus to provide optimised integrated hybrid cooling system
• Can control up to two external third party air conditioners via “failsafe” relay units – automatic changeover function and activation of standby air conditioner in case of failure of active unit
• Emergency cooling during AC power failure

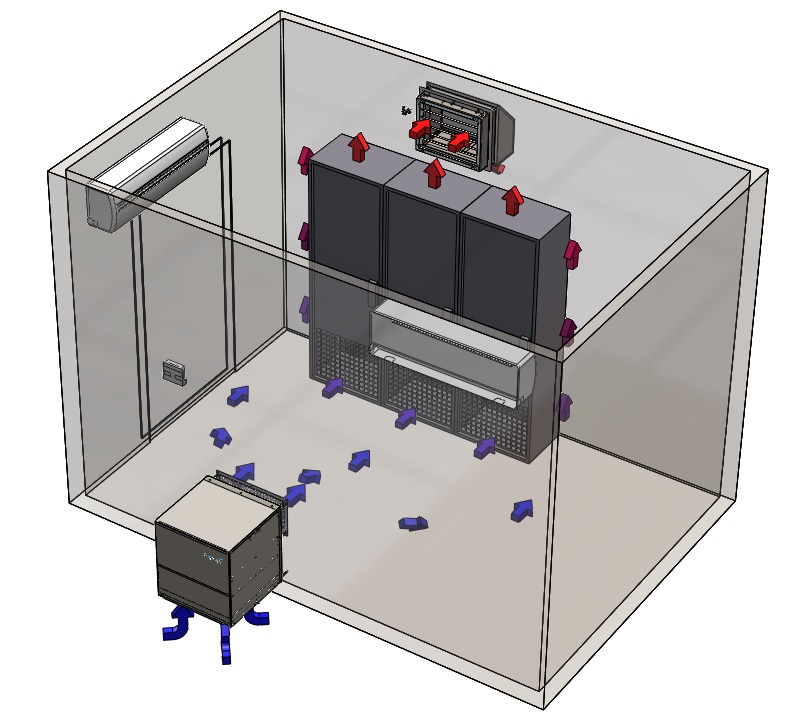

• Positive pressurisation ensures no dirty air is drawn into shelter via gaps or other openings

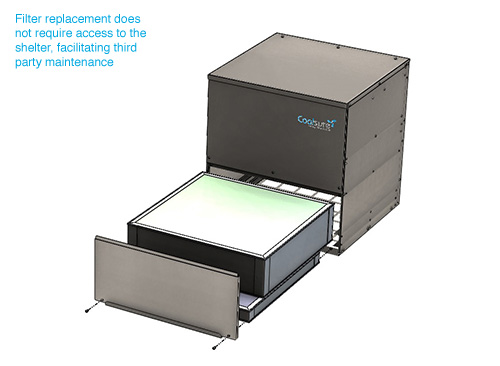

• No access needed to inside shelter for filter replacement/service
• Analogue filter pressure monitor provides adjustable filter service, filter clogged and filter missing alarms.
• Comprehensive built in alarms can be mapped to four programmable relay outputs
• Optional smoke detector shutdown input
• Connects to optional Central Control Unit (CCU) to allow full adjustment and monitoring of operating parameters

Support for remote monitoring and control capability via Coolsure Sentinel remote monitoring system, or third party remote monitoring system (via Modbus adaptor).
